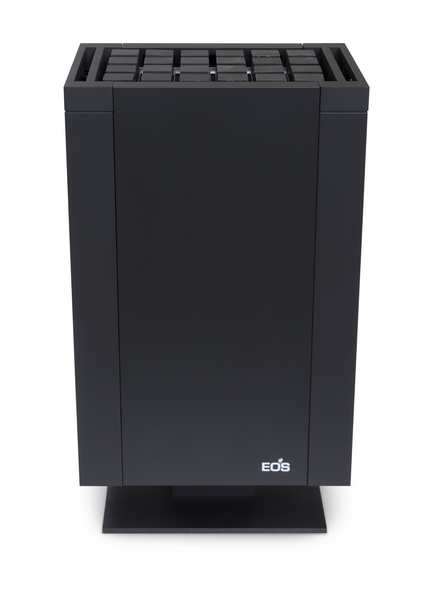

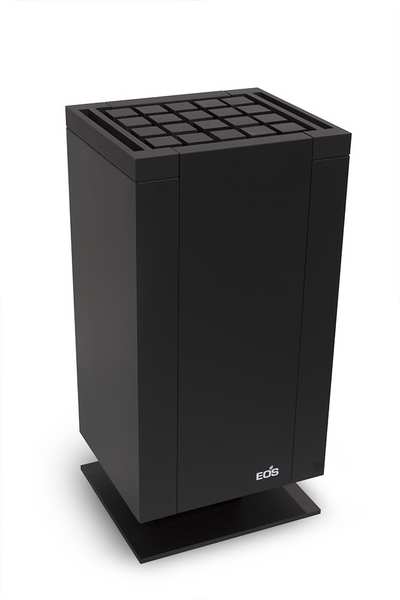

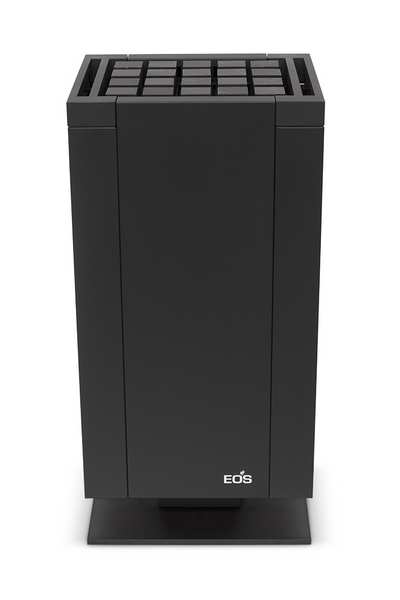

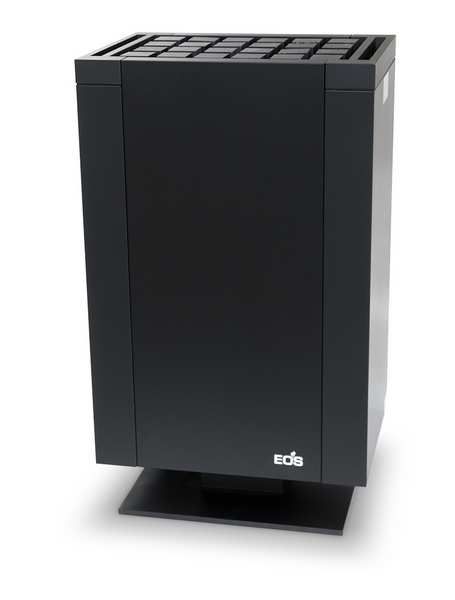

EOS Mythos black
S-Line
EOS Mythos sauna heater with the exclusive matt black finish on all sides.
Available as EOS Mythos S35 in 7.5 or 9 kW or as EOS Mythos S45 in 12 or 15 kW.
EOS Mythos black is also available as a vapor model. The vaporiser is not built-in, but can be simply mounted to the left or right side which gives you more design options.
The special highlight are the black Cubius stones that perfect the design of the heater (included in the delivery).
Upon request
Power | Item no. |
S35 - 7,5 kW | 94.6066 |
S35 - 9,0 kW | 94.6067 |
S45 - 12,0 kW | 94.6068 |
S45 - 15,0 kW | 94.6069 |
-
EOS Mythos black - S35 model with inclusive Cubius stones -
EOS Mythos black - S35 model with inclusive Cubius stones -
EOS Mythos black - S45 model with inclusive Cubius stones -
EOS Mythos black - S45 model with inclusive Cubius stones -
For S35 models -
For S45 models

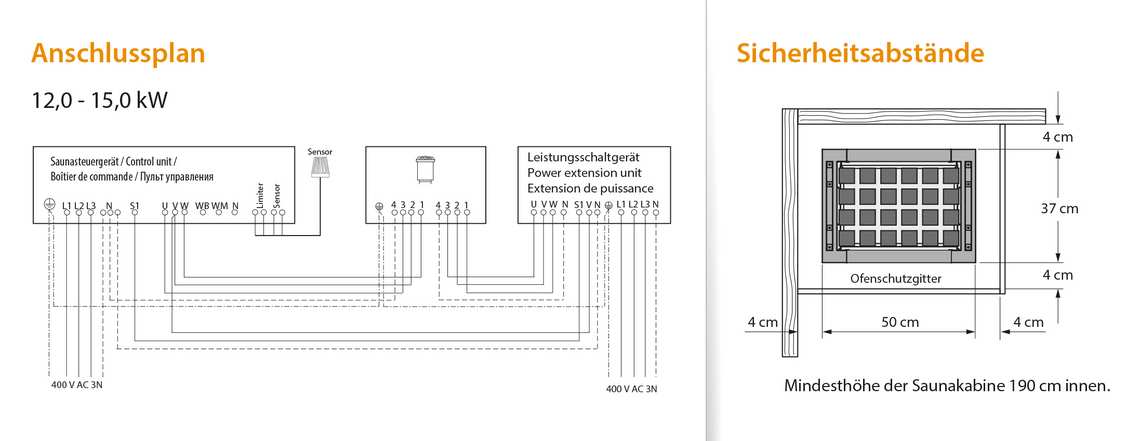

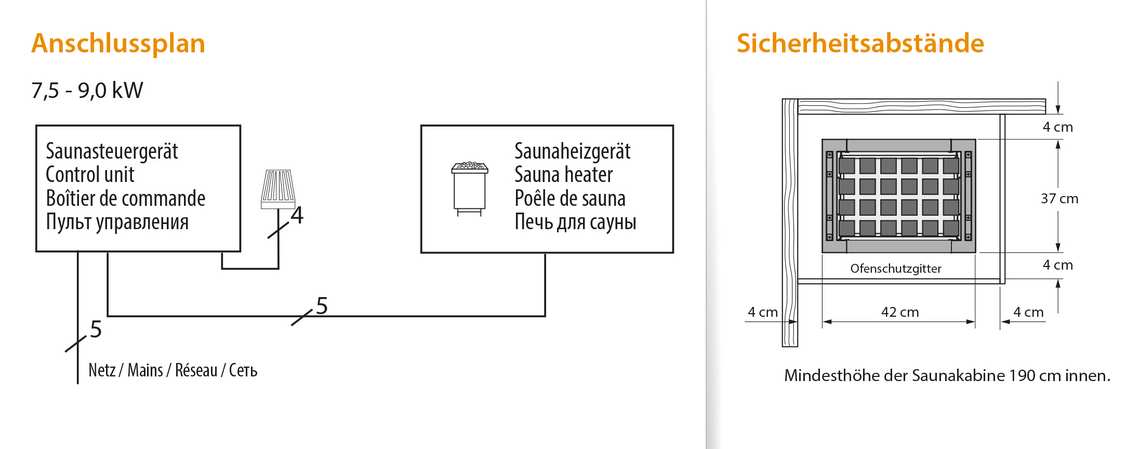

Electrical connection | 400V 3N AC 50 Hz |
Dimensions H x W x D (S35 / S45), in cm | 84 x 42 x 37 / 84 x 50 x 37 |
For sauna cabin size (7,5 / 9 / 12 / 15 kW) | 8 - 12 m³ / 10 - 14 m³ / 14 - 18 m³ / 18 - 25 m³ |
Min. size air inlet and outlet (7,5 / 9 / 12 / 15 kW) | 35 x 5 cm / 35 x 6 cm / 35 x 7 cm / 35 x 9 cm |
Fuse protection control unit | 3 x 16 A |
Fuse protection LSG unit | 3 x 16 A (only S45) |
Weight withouth rocks (S35 / S45) | 34 kg / 40 kg |
Stone filling (S35 / S45) | 35 kg / 45 kg |
Power extension required (S35 / S45) | no / EMOTECT L09 R |
