EOS Shark
S-Line

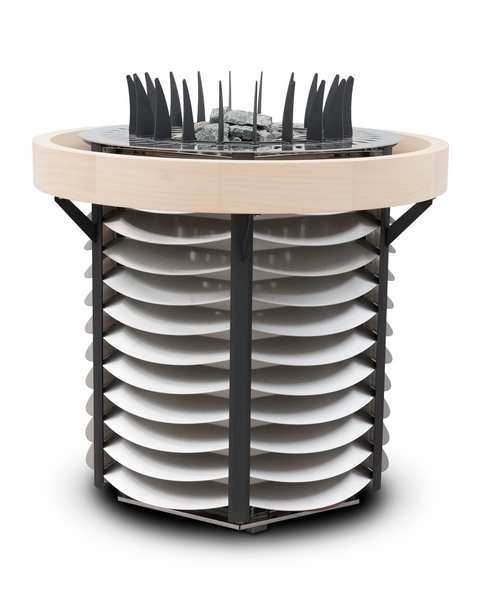

Exclusive sauna heater in a distinctive round-shaped design with open rock store.
For intensive commercial use. Perfect for installation in front of glass or central position. The unique design in the shape of an open lamella structure not only lends the stove its unprecedented appearance, it also ensure excellent heating and thermal flow behaviour.
Power supply: 400 V 3N AC

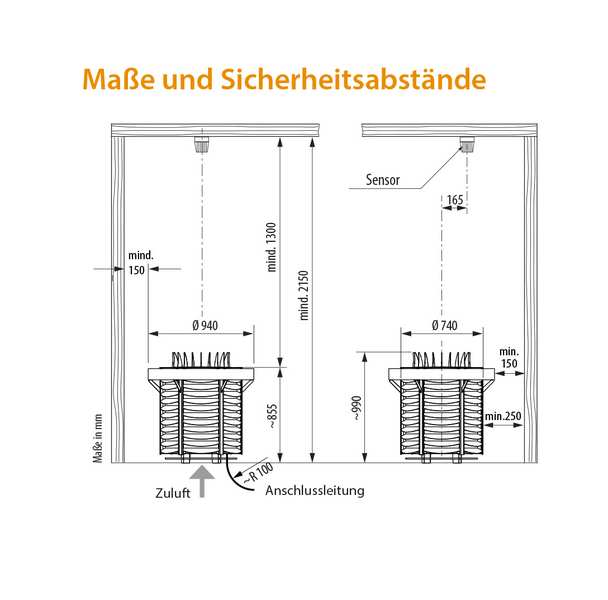

Dimensions:
- without guard rail ø 74 x 99 cm
- with saftey guard rail ø 94 x 99 cm
Completely made of high grade stainless steel. Facia strips and design elements in anthracite finish.
Rock store fits approx. 50-55 kg stones.
Optional: solid wood safety guard rail 360° or 270°
-
Guard rail optional -
Guard rail optional -
-
Model | Power | Item no. |
EOS Shark without mounting brackets | 12,0 kW | 94.6885 |
15,0 kW | 94.6886 | |
18,0 kW | 94.6887 | |
21,0 kW | 94.6888 | |
24,0 kW | 94.6889 | |
EOS Shark with mounting brackets 270° | 12,0 kW | 94.6880 |
15,0 kW | 94.6881 | |
18,0 kW | 94.6882 | |
21,0 kW | 94.6883 | |
24,0 kW | 94.6884 | |
EOS Shark with mounting brackets 360° | 12,0 kW | 94.6497 |
15,0 kW | 94.6498 | |
18,0 kW | 94.6499 | |
21,0 kW | 94.6500 | |
24,0 kW | 94.6501 |

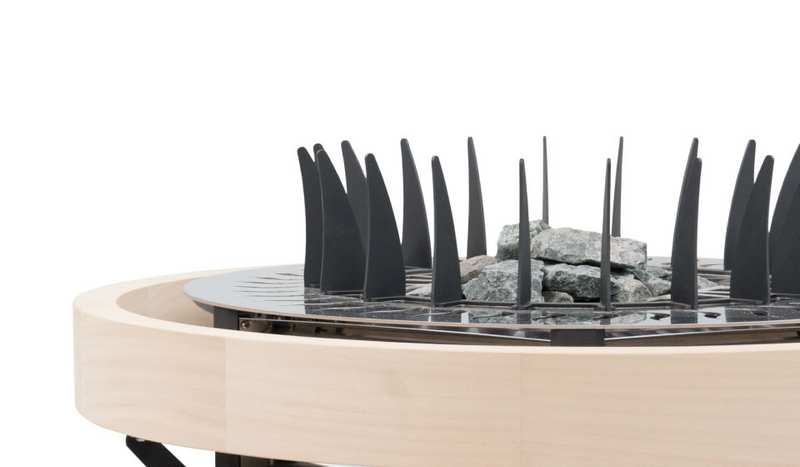

- Unique state-of-art design with open rock store
- Improved inner construction with better air circulation for faster heat-up times.
- Ideal for placement in front of glass walls or in the centre of the sauna.
- Durable construction of stainless steel
- Exclusive guard rail in matching design as an option, available in various wood sorts.
- Rock store fits approx. 50-55 kg stones.

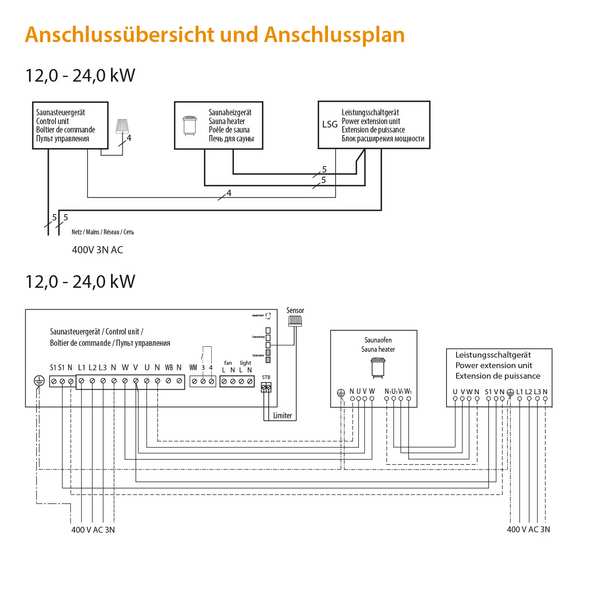

Electrical connection | 400 V 3N AC 50 Hz |
Dimensions D x H, in cm | Ø 74 x 99 |
Fuse protection control unit | 3 x 16 A |
Fuse protection LSG unit | 3 x 16 A |
Weight withouth rocks | 110 kg |
Stone filling | 50-55 kg |
Power extension required | EMOTEC L09 R / LSG 18 (for 21 & 24 kW) |
